-      DESCRIPTION

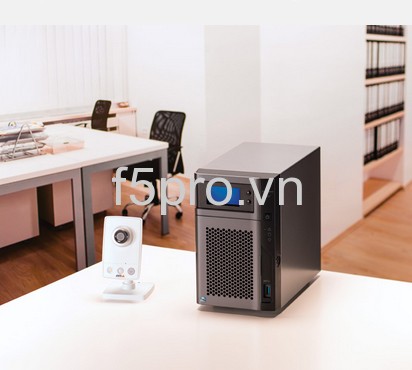

LENOVOEMC PX2-300D NETWORK STORAGE

-      Form Factor

Desktop form factor; supports up to 2 3.5" SATA HDDs (trays included)

-      Processor

Intel® Atom Dual Core 1.8GHz D525 processor

-      Memory

2GB DDR3

-      Ethernet

2 10/100/1000 Mbps Ethernet ports (RJ45 connector)

-      Configurations

2-drive configurations include SATA-II Server-Class 7200rpm hard drives

-      RAID Support

• RAID 0, 1 (Hot swap in RAID 1)
• JBOD mode available
• Note: RAID/storage pool should be the same capacity, speed, and manufacturer. Mixing different types of drives may result in unpredictable behavior.

-      Power Consumption

• Max: 40W
• Min: 20W (drives spun down)
• Peak: 65W for 1.5s
• Note: These values represent a fully loaded device with the highest capacity HDD. Values may differ with other configurations.

-      iSCSI Support

iSCSI LUNS – up to 256 LUNs

-      Ports

• 1 USB 3.0 and 2 USB 2.0 ports
• 2 x RJ45 10/100/1000Mbps (GbE) Ethernet ports
• 1 VGA port

-      LAN Standards

• IEEE 802.3
• IEEE 802.3u

-      AC Voltage

100-240 VAC, 50-60Hz

-      Acoustic Noise

28 dBA maximum

-      Temperature, Humidity, and Altitude

• Ambient Temp - Operating: 10° to 35° C (50° to 95° F); Non-Operating: -40° to 60° C (50° to 140° F)
• Temp Gradient - Operating: 12° C per hour
• Humidity (non-condensing) - Operating: 8% to 85% R.H.; Non-Operating: 5% to 95% R.H.
• Max Wet Bulb - Operating: 26.6° C; Non-Operating: 29.4° C
• Altitude - Operating: to 7,500 feet; Non-Operating: to 40,000 feet

-      User Interface Localization

User interface localized for English, French, Italian, German, Spanish, Brazilian Portugese, Russian, Traditional Chinese, Simplified Chinese, Korean, Japanese, Arabic, Hebrew, Turkish, Swedish, Dutch, and Polish

-      System Requirements

• Available 10/100/1000 Mbps network Ethernet port
• Internet Explorer 7, Firefox® 3.x, Chrome 9, Safari 4 or later browser
• Personal cloud and remote access require an internet connection; UPnP™ compatible router or administrative rights to port forward; 2.5 Mbit/s download, 500Kbit/s upload (not compatible with Active Directory or XP 64 bit)
• PC Users: Microsoft Windows XP / Vista / 7 / 8
• Mac® Users: Mac OS X 10.6 - 10.8
• Linux® Users: Redhat Enterprise 6, Ubuntu 11, OpenSUSE 11.4, other compatible Linux versions
