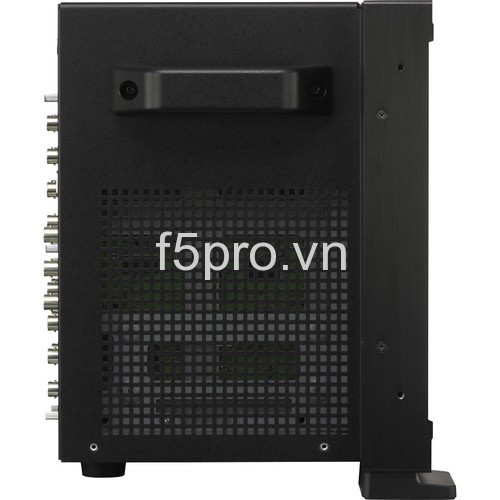

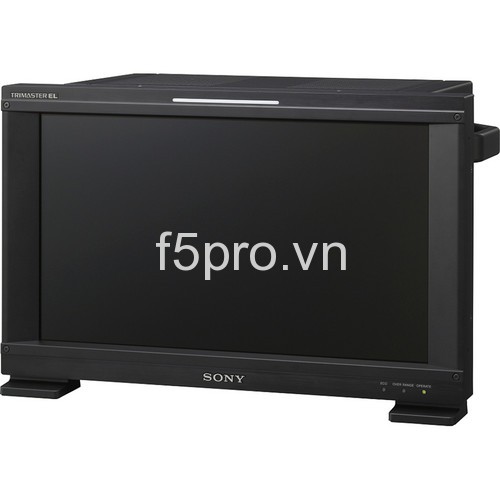

Màn hình chuyên dụng LCD Sony BVM-E170A
The Sony BVM-E170A 17" Trimaster EL E-Series OLED Master Monitor is a reference monitor that uses Sony’s OLED system and incorporates various technologies to bring out the full performance capabilities required for critical picture evaluation.
This TRIMASTER EL monitor uses Sony’s Super Top Emission technology with the 10-bit RGB panels and OLED processing. It also comes with a professional display engine that uses a non-linear cubic conversion color management system, along with cutting-edge I/P conversion technologies with low process delay and a 12-bit output accuracy signal processing.
Along with HDMI, DisplayPort, and two 3G/HD/SD-SDI input ports; it comes with 4 option slots for input expansion that allows for increases in system versatility, enabling you to add decoders for signal formats not supported by the supplied inputs.
Additionally, it supports 2K Cinema formats with multiple display modes along with offering high frame rates and a wide color gamut. Auto white adjustment can be done with the included PC application software when combined with a PC and a commercially available calibration tool. It also supports 3D signal analysis (as a 2D monitor) with the BKM-250TG 3G-SDI Input Adapter (sold separately). Closed caption display can also be achieved with the BKM-244CC HD/SD-SDI Closed Caption Adapter (sold separately).
Màn hình chuyên dụng LCD Sony BVM-E170A
Panel | OLED |
Picture Size | 16.5" (41.97 cm) (diagonal) |
Effective Picture Size (H x V) | 14.4 x 8.1" (36.58 x 20.57 cm) |
Resolution (H x V) | 1920 x 1080 pixels (Full HD) |
Aspect Ratios | 16:9 |
Pixel Efficiency | 99.99% |
Panel Drive | RGB 10-bit |
Panel Frame Rate | 48 Hz/50 Hz/60 Hz/72 Hz/75 Hz (48 Hz, 60 Hz, and 72 Hz are also compatible with 1/1.001 frame rates) |
Viewing Angle | 89°/89°/89°/89°(typical)(up/down/left/right contrast > 10:1) |
Color Temperature | D55, D61, D65, D93, D-Cine (D-Cine: x = 0.314, y = 0.351) and user |
Luminance | 100 cd/m2 (Preset1 to Preset5) (100% white signal input) |
Color Space | ITU-R BT.709, EBU, SMPTE-C, D-Cine (Chromaticity point of SMPTE RP 431-2 is not covered in full), E250 Native, S-GAMUT, The BVM-E250A individual chromaticity points: R (x = 0.681, y = 0.319) / G (x = 0.189, y = 0.724) / B (x = 0.141, y = 0.051) (typical) |
Compatible Software | For Auto White Adjustment Calibration: Konica Minolta CA-210, CA-310, CS-200, DK-Technologies PM5639/06, X-Rite i1 Pro/i1 Pro2, Photo Research PR-655/670, Klein K-10, and JETI specbos 1211. (each sold separately ) |

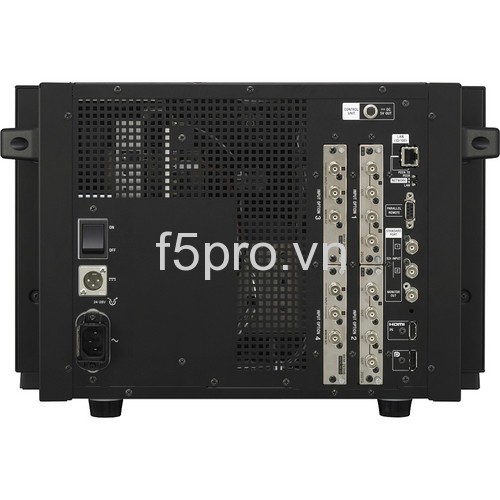

Input | |
---|---|
SDI | 2 x BNC |
HDMI | 1 x HDMI (HDCP correspondence, Deep Color correspondence) |
DisplayPort | 1 x DisplayPort connector |
Port | 4 Option ports |
Remote | Parallel: 1 x D-sub 9-pin (female) Serial (LAN): 1 x Ethernet (10BASE-T/100BASE-TX), RJ-45 |
Output | |
---|---|
SDI | 1 x BNC (monitor output) |
DC Output | 5 VDC 1 x circle 4-pin (female) |
General | |
---|---|
Power Requirement | 100 to 240 VAC, 1.2 to 0.7 A, 50/60 Hz 24 to 28 VDC, 4.5 to 3.9 A |
Power Consumption | Maximum: Approximately 110 W (AC), 100 W (DC) Average Power Consumption in the Default Status: Approximately 60 W (AC), 60 W (DC) |
Operating Temperature | 32 to 95°F (0 to 35°C) Recommended: 68 to 86°F (20 to 30°C) |
Operating Humidity | 0 to 90% (no condensation) |
Pressure Level | 700 to 1,060 hPa |
Dimensions (W x H x D) | Without Monitor Feet: Approximately 17.17 x 10.49 x 8.45" (43.60 x 26.64 x 21.47 cm) With Monitor Feet: Approximately 17.17 x 11.12 x 8.45" (43.60 x 28.24 x 21.47 cm) |
Weight | Approximately 18.96 lb (8.60 kg) |
